CQDH20C

Double deep reach truck.Pantograph reach truck 1.0T load capacity ,It is a standing electric deep reach truck with a load capacity of 1.6 tons, designed for the crowded high racking systems and various sizes of pallets. It can reach high up to 11 ···

Special Features

Capacity:: 2000/1600kg
Lift Height:: 4500/5000/6000/6500/7000/7700/9000mm
Fork Dimension:: 40/100/1070mm

Request A Quote Pobierz PDF

Overview

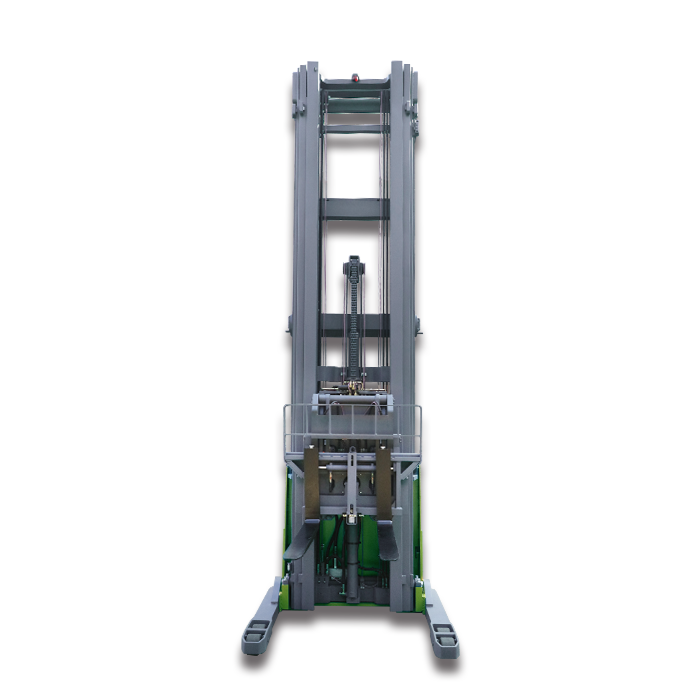

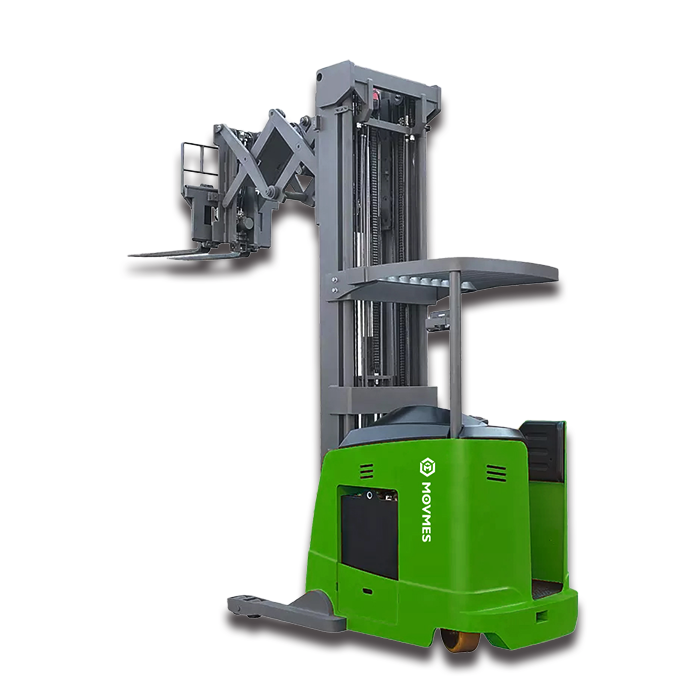

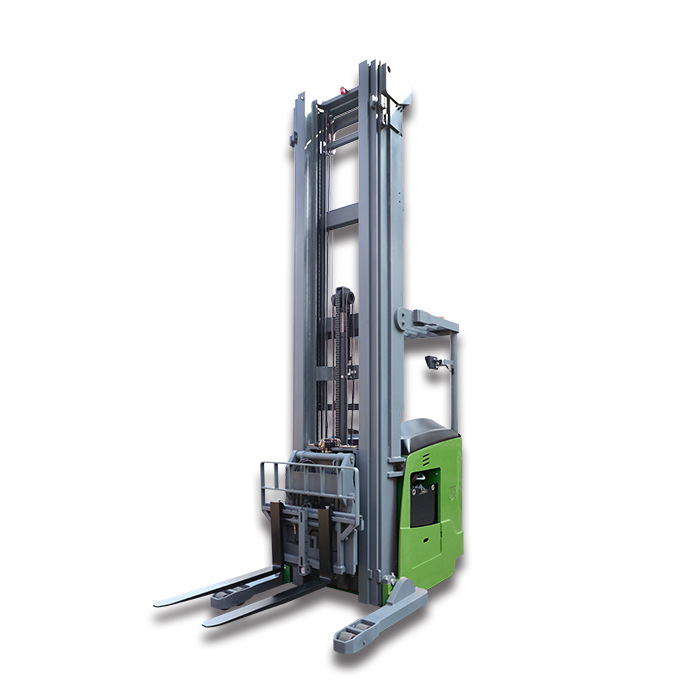

Double deep reach truck.

Pantograph reach truck 1.0T load capacity ,It is a standing electric deep reach truck with a load capacity of 1.6 tons, designed for the crowded high racking systems and various sizes of pallets. It can reach high up to 11 meters and perform optimum stability. The scissor forks can reach deep racking, maximizing transportation efficiency and warehouse utilization. With the help of the proportional lifting system, the integrated side shift and the optional camera, the CQDH20C brings a big bundle of productivity and stacking accuracy.

Joystick Controller

Finger-operated joystick controller, designed for smooth and precise control of multiple functions.

Electric Power Steering

Electric Power Steering as standard feature, with smart steering wheel present a light and relaxing steering experience in operation.

Curtis controller and display

36volt CURTIS AC control system, smaller electric current to ensure the reliability of the battery system.Multi-function display for battery status, hour meter, fault code, slow running state, etc.
